Long range air defense system “Buk-MB”

Long range air defense system “Buk-MB”

Designation of air defense system:
- for destruction of aircrafts, wing missiles, helicopters and other aerodynamical targets within the whole range of their application in intensive radio countermeasures conditions;
- for fight with tactical ballistic missile, “HARM”-type antiradar missile and other precision-guided weapons;
- for firing of ground and overwater radar contrast targets.

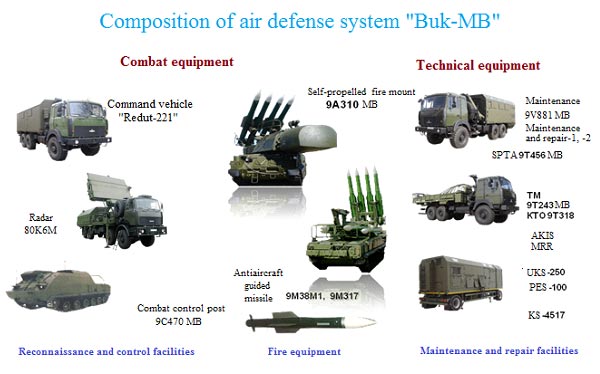

Зенитный ракетный комплекс средней дальности «Бук-МБ»

Self-propelled fire mount 9А310 МB

Designation: destruction of air targets as per control center data and in the autonomous mode in the assigned sector
Main characteristics of self-propelled fire mount

Parameter

Value

Maximum speed of engaged targets, m/s

1200

Detection range of MiG-29-type targets, km

95

Acquisition range of MiG-29-type target, km

85

Jamming protection, dB

20

Opticalelectronic system

Automatic

Communication range between self-propelled fire mount-launching loading facility, m Дальность связи между СОУ-ПЗУ (ПБУ), м

1000 (5000)



Launching loading facility 9А39 МB

Designation:
- preparation and launch of antiaircraft guided missile as per control signals of self-propelled fire mount;
- self-loading, loading, unloading of antiaircraft guided missile;
- transportation and storage of 8 antiaircraft guided missiles.

Main characteristics of launching loading facility

Parameter

Value

Type of antiaircraft guided missile used

9М38, 9М38М1,9М317

Fight readiness time

Not more than 3 s

Integrated diagnostic system

Available, extended

Fight documentation system

Available

Communication range between launching loading facility and self-propelled fire mount, m

1000



Combat control post 9С470 МB

Designated for automated control of combat operations of a separate antiaircraft missile division “BUK MB”.
Main characteristics of combat control post

Parameter

9С470МB

Number of targets tracked

Up to 80

Digital terrain map

Available

Work with ballistic target

Available

Calculation of detection zone of self-propelled fire mount by radar

Available

Registration of operator’s actions

Available

Integrated training with self-propelled fire system and air command post

Available

Number of targets simulated

Up to 80

Functional control

Automatic

Reporting on work

Available



Radar 80K6M

Designation
- detection, automatic tracking and measurement of three coordinates and parameters of air targets motion (including ballistic ones);
- target recognition using ground interrogator;
- detection of jamming bearings;
- transmission of combat radar information to mated devices.
Technical characteristics

Parameter

Value

Number of coordinates measured

3

Frequency range

dm

Number of targets tracked

>150

Space scanning period

5-10 секунд

Resolution power

in range

in azimuth

in elevation



500 – 600 м

2,5 – 3,5 °

7,6 °

Detection of ballistic targets

Yes



Command vehicle “Redut”

Designation: automation of collective work of headquarters’ officials in the control process at the stage of preparation and during combat operations
AWS team
AWS-1 – head of brigade headquarters
AWS-2 – head of operations section
AWS-3 – head of reconnaissance
AWS-4 – officer-operator
Main characteristics of command vehicle

Parameter

Value

Launch time, min

5

Time of continuous operation, h

24

Power voltage, V

380 3 phase

Board network voltage, V

27

Consumed power, kW

2

Number of tasks solved:

calculation tasks

information tasks

combat control tasks



25*

6*

5*

Type of local computer network

Ethernet

Data exchange speed, Mb/s

100

DTM format

SXF
